Best Bike Bottle Holders for Large Bottles
A big bottle needs a wide cage. Here is which of these four really takes the diameter.
Updated · 3 min read · 4 products evaluated
Standard bike cages are cut for a bottle about 7 cm across, so a 32 oz insulated bottle or a fat travel flask will not seat properly. On a tricycle the road bumps are steady and the bottle sits further from your hand, which makes a loose fit more annoying.
We compared holders on the diameter range they state, how they mount and what the frame has to offer. Many trike frames have no threaded bottle bosses at all, so a strap-on or clamp design may be your only route; we flag where a holder needs bosses and where it does not.
Short answer
Lamicall is the best overall pick, with a stated bottle diameter range of 2.75 to 3.94 inches and a plastic body. WUVOP is the best for trikes with no threaded holes, since it straps onto the handlebar and holds 12 to 34 oz. FiveBox and USHAKE are aluminum cages for mid-size bottles up to about 28 oz, and ROCKBROS suits only standard bottles.
Quick Picks
Our 4 recommendations at a glance. Tap a pick for the full verdict.
Best for Frames Without Holes
WUVOP Handlebar Bottle Holder with Pocket
Trikes with no bottle bosses
Best Metal for Mid-Size Bottles
FiveBox Aluminum Bottle Cage
Bottles of 23 to 28 oz
Our Picks
Best Overall1 of 4

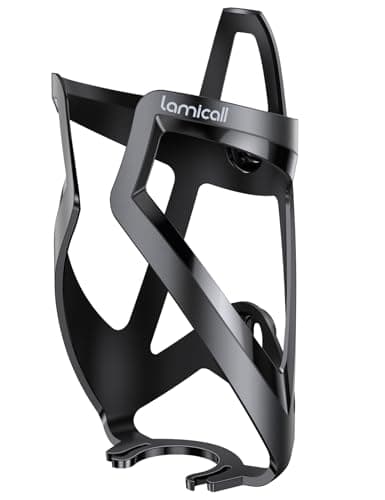

Lamicall Ultralight Bottle Cage
The widest stated diameter range here, at 2.75 to 3.94 inches.
Best for
Fat insulated bottles
Why we like it
Lamicall is a plastic bottle cage weighing about 1.2 oz that holds bottles from 2.75 to 3.94 inches in diameter, with screws and a tool included. That top end of nearly 4 inches is the widest range here and fits big insulated flasks that metal cages cannot spread to take.
Against FiveBox and USHAKE it accepts a fatter bottle but is plastic rather than aluminum. It needs pre-drilled holes in the frame, and measure your bottle before buying, since the maker asks you to check the cup size.
Key specs
| Size | Fits 2.75 to 3.94 in diameter bottles |
|---|---|
| Fit and mounting | Pre-drilled frame holes, screws and tool included |
| Features | Plastic, about 1.2 oz |
Specs can change between model years; confirm the exact version before buying.
Strengths
- Fits up to 3.94 in bottles
- Very light at 1.2 oz
- Screws and tool included
- Plastic body will not scratch
Limitations
- Needs pre-drilled holes
- Plastic can flex when old
Consider it if
- Fat insulated bottles
- Frames with bosses
Skip it if
- Frames with no threaded holes
Best for Frames Without Holes2 of 4
WUVOP Handlebar Bottle Holder with Pocket
Strap-on handlebar holder takes 12 to 34 oz bottles and needs no threaded holes.
Best for
Trikes with no bottle bosses
Why we like it
WUVOP is a mesh and fabric holder with a drawstring top, three adjustable hook-and-loop straps and a stated capacity of 12 to 34 oz when properly fitted. It mounts on handlebars from 0.9 to 3 inches in diameter, so it suits trikes that have no frame bosses at all.
Against Lamicall it takes a wide range without drilling, but it hangs from a bar so it adds weight where you steer. A side mesh pocket and an adjustable shoulder strap let you carry small items or the bag off the bike; check it does not block a brake lever.
Key specs
| Size | Holds 12 to 34 oz bottles |
|---|---|
| Fit and mounting | Handlebar 0.9 to 3 in, three adjustable straps |
| Features | Drawstring top, side mesh pocket, shoulder strap |
Specs can change between model years; confirm the exact version before buying.
Strengths
- No frame holes needed
- Holds up to 34 oz
- Side mesh pocket
- Adjustable shoulder strap
Limitations
- Hangs from the handlebar
- May swing on rough paths
Consider it if
- Frames with no bosses
- Riders carrying small items
Skip it if
- Riders who dislike bar-mounted weight
Best Metal for Mid-Size Bottles3 of 4
FiveBox Aluminum Bottle Cage
Aluminum cage for 23 to 28 oz bottles at standard screw spacing.
Best for
Bottles of 23 to 28 oz
Why we like it
FiveBox is an aluminum alloy cage built for 23 to 28 oz bottles, with arms that wrap the bottle, a standard 56 to 71 mm screw spacing and two screws included. A 4 mm hex key is not included, so you need to supply one.
Against Lamicall the metal body is stiffer but the top diameter is smaller, and against USHAKE it is a single cage. It needs a frame with threaded holes, so confirm your trike has them. It suits a rider with a 24 to 28 oz bottle who prefers metal.
Key specs
| Fit and mounting | Two screws at 56 to 71 mm spacing |
|---|---|
| Features | Aluminum alloy, fits 23 to 28 oz bottles |
Specs can change between model years; confirm the exact version before buying.
Strengths
- Light aluminum alloy
- Standard screw spacing
- Two screws included
- Holds 23 to 28 oz bottles
Limitations
- Needs threaded frame holes
- Hex key not included
Consider it if
- Mid-size bottles
- Frames with bosses
Skip it if
- Very fat insulated flasks
Best Two-Pack4 of 4

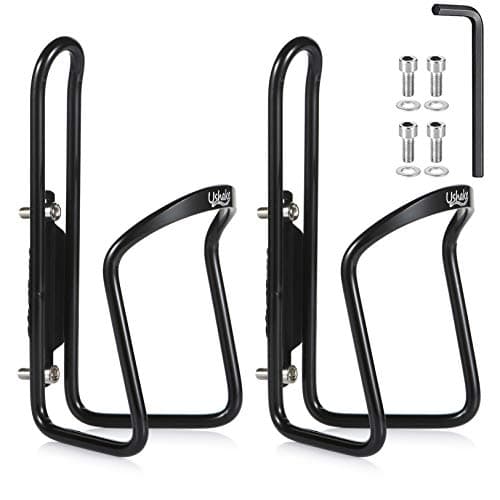

USHAKE Aluminum Bottle Cages (2 Pack)
Two heat-treated aluminum cages for plastic bottles up to 3 inches.
Best for
Two bottles on one frame
Why we like it
USHAKE sells two cages in 6061-T6 heat-treated aluminum, 2.1 oz each, with four M5 by 12 mm screws and a 4 mm hex key included. They are meant for plastic bottles around 26 oz and between 2.75 and 3 inches in diameter.
It is lighter than a steel cage and gives you a spare, but it is the narrowest range of the cages here for a large bottle, so measure first. The frame needs threaded or drilled holes. It suits a trike with two sets of bosses.
Key specs
| Size | Fits 2.75 to 3 in diameter bottles |
|---|---|
| Fit and mounting | Four M5 x 12 screws, 4 mm hex key included |
| Features | 6061-T6 aluminum, 2.1 oz each, 2 pack |
Specs can change between model years; confirm the exact version before buying.
Strengths
- Two cages in the pack
- Heat-treated aluminum
- Screws and hex key included
- Light at 2.1 oz each
Limitations
- Smaller bottle range than Lamicall
- Needs bosses on the frame
Consider it if
- Two bottles on a frame
- Frames with bosses
Skip it if
- Fat 32 oz flasks
Spec Comparison
Key figures side by side. A dash means the brand gives no figure, so ask before you buy if it matters to you.
| Model | Size | Fit | Features | Link |
|---|---|---|---|---|
| Lamicall Ultralight Bottle Cage Best Overall | Fits 2.75 to 3.94 in diameter bottles | Pre-drilled frame holes, screws and tool included | Plastic, about 1.2 oz | Check price |
| WUVOP Handlebar Bottle Holder with Pocket Best for Frames Without Holes | Holds 12 to 34 oz bottles | Handlebar 0.9 to 3 in, three adjustable straps | Drawstring top, side mesh pocket, shoulder strap | Check price |
| FiveBox Aluminum Bottle Cage Best Metal for Mid-Size Bottles | — | Two screws at 56 to 71 mm spacing | Aluminum alloy, fits 23 to 28 oz bottles | Check price |
| USHAKE Aluminum Bottle Cages (2 Pack) Best Two-Pack | Fits 2.75 to 3 in diameter bottles | Four M5 x 12 screws, 4 mm hex key included | 6061-T6 aluminum, 2.1 oz each, 2 pack | Check price |
How We Chose These Bike Bottle Holders for Large Bottles
- Bottle diameter range
- We compared the stated diameter each holder accepts, since that decides whether a large bottle fits. Holders with a range above 3 inches ranked higher.
- Mount type
- We separated holders that need threaded frame holes from the strap-on design, because many trike frames have no bosses at all.
- Materials and weight
- We compared plastic and aluminum builds and noted stated weights, such as 1.2 oz and 2.1 oz, to judge how they would hold a heavy bottle.
- Honest limits
- These products sell strongly but their ratings are unverified, so none is called proven. We flagged ROCKBROS as too small for large bottles.
What to Look for in a Bike Bottle Holder for Large Bottles
Bottle diameter, not ounces
Ounces tell you volume, not width. A tall thin 32 oz bottle and a short fat 32 oz flask fit very different cages. The holder only cares about the diameter in the middle of the bottle.
Measure your bottle at its widest point with a tape. Compare it with the stated range, such as 2.75 to 3.94 inches for Lamicall, and leave a few millimetres of grip.
Frame holes or straps
Most frame cages screw into threaded holes called bosses. Many tricycles have none, and drilling a frame can weaken it.
Check your frame for two small holes about 56 to 71 mm apart. If you find none, choose a strap-on or handlebar holder like WUVOP instead.
Cage material
Plastic cages are light and kind to a bottle finish, but can flex or crack in cold. Aluminum is stiffer and holds a bottle firmly, but can scratch paint.
On a trike with steady bumps, a stiff aluminum arm resists loosening. Check the screw size and tighten with a hex key, and recheck after the first ride.
Reach and position
A trike rider sits upright, so a cage on the down tube can be hard to reach and may sit behind a basket or frame bracket. A bar-mounted holder is closer to your hand.
Sit on the trike and reach for where the bottle will go. If you must twist, pick a handlebar mount or a different location.
How to Choose
By Bottle Size
| Situation | Our pick | Why |
|---|---|---|
| Fat insulated flask, 3.5 in wide | Lamicall Ultralight Bottle Cage | Stated range reaches 3.94 inches |
| 34 oz bottle, no frame holes | WUVOP Handlebar Bottle Holder with Pocket | Strap-on design takes up to 34 oz |
| 24 to 28 oz plastic bottle | FiveBox Aluminum Bottle Cage | Aluminum cage for 23 to 28 oz bottles |
| Two 26 oz bottles | USHAKE Aluminum Bottle Cages (2 Pack) | Two cages come in one pack |
Frame Cage vs Handlebar Holder
- Frame cage
- Lamicall, FiveBox and USHAKE bolt onto threaded frame holes. They are stiff, light and stay put on rough paths, but they require bosses that many trike frames lack.
- Handlebar holder
- WUVOP straps onto the bar with no holes. It fits any frame and carries extra items, but hangs from the steering area and can swing on bumps.
Most trike riders should check for frame holes first, and choose WUVOP only if there are none.
For Wide Rear Baskets Specifically
- Look for
- A holder that mounts forward of a rear basket so the basket does not block the bottle, and a bottle you can reach without twisting.
- In this comparison
- WUVOP hangs on the handlebar so a rear basket never blocks it. Lamicall works on the down tube if your frame has bosses and the basket sits behind the seat.
When to Spend More
- Spend more if
- you carry a heavy flask every ride. Lamicall and USHAKE cost more than FiveBox and add a wider range or a spare cage.
- Save if
- your bottle is 24 to 28 oz and you have frame holes. FiveBox is the least costly pick and holds that size firmly.
Frequently Asked Questions
What size bottle fits these holders?
It depends on diameter: Lamicall states 2.75 to 3.94 inches, FiveBox from 2.75 inches and USHAKE 2.75 to 3 inches, and WUVOP 12 to 34 oz. ROCKBROS fits only 17 to 21 oz bottles. Measure your bottle across the middle before choosing.
Can I fit a cage if my trike has no bottle bosses?
Not without drilling, which risks weakening the frame. A strap-on handlebar holder such as WUVOP is the better route. Alternatively, look for a clamp adapter, though none is included here, and check it suits your frame tube.
Do I need a hex key?
Yes, usually. USHAKE includes a 4 mm key and ROCKBROS a 3 mm wrench, and Lamicall supplies a tool, but FiveBox does not include its 4 mm key. Check what you have before you start so you do not strip a screw.
Will a big bottle bounce out?
A well-matched cage holds firmly, but a loose fit can let a heavy bottle jump on bumps. Choose a holder whose stated range clearly includes your bottle, and tighten the screws. For rough paths, test with a full bottle before relying on it.
Are aluminum cages better than plastic ones?
Aluminum, as on FiveBox and USHAKE, is stiffer and tolerant of cold. Plastic, as on Lamicall, is lighter and gentler on bottle paint, and can fit wider bottles. Neither is clearly superior, so choose by bottle diameter first and material second.
Bottom Line
Lamicall is the best choice when your trike has frame holes and your bottle is wide, with a stated range up to 3.94 inches. WUVOP is the smart answer when the frame has no bosses. Choose FiveBox or USHAKE for mid-size aluminum cages, and skip ROCKBROS for large bottles.
