Best Bike Headlights with Garmin Mounts
Four Garmin-mount headlights compared on beam, runtime and how they fit alongside a cycling computer on trike bars.
Updated · 3 min read · 4 products evaluated
A Garmin-style quarter-turn mount lets a headlight twist on and off in a second, which is handy on a trike that gets parked in a garage or a carport. It also lets the light sit on an out-front mount, ahead of the bars, so a bike computer or phone can stay where you can see it.
The four lights here all take that kind of mount, but they are not interchangeable. Output ranges from 160 to 1300 lumens, and some bring their own Garmin adapter while others need parts swapped. We compared them on that and on how each behaves on wide trike bars.
Short answer
The Magicshine Hori 1300S is the best Garmin-mount headlight here because its cut-off low beam keeps oncoming traffic comfortable while the 1300 lumen high beam handles dark roads. The towild CL1200 gives the longest runtime, the Ravemen FR500 suits city riders who want auto on and off, and the Ravemen FR160 is a small daytime flasher.
Quick Picks
Our 4 recommendations at a glance. Tap a pick for the full verdict.
Our Picks
Best Overall1 of 4
Magicshine Hori 1300S
A cut-off low beam and 1300 lumen high beam on one dual mount.
Best for
Mixed city and dark road riding
Why we like it
The Hori 1300S has a high beam rated at 1300 lumens and a low beam with a sharp cutoff, so on a street you do not blind drivers. The dual mount takes Garmin, Wahoo or Bryton computers, and the bar clamp fits 28, 32 and 35 mm bars.
A vibration sensor wakes the light and it shuts down after 5 minutes of inactivity. Compared with the towild it adds a remote and beam shaping, but it costs more. Check the clamp against your trike bar before ordering.
Key specs
| Fit and mounting | Dual mount, Garmin/Wahoo/Bryton, fits 28/32/35 mm bars |
|---|---|
| Features | 1300 lumens, cut-off low beam, IPX6, remote included |
Specs can change between model years; confirm the exact version before buying.
Strengths
- High and low beam modes
- Sensor wake and auto-off
- Remote control included
- IPX6 aluminum body
Limitations
- Costs more than the towild
- Needs bar diameter check
Consider it if
- Riders who share roads with cars
- Those who also run a bike computer
Skip it if
- Anyone wanting the lowest cost
Best Runtime2 of 4
towild CL1200
A 5000 mAh battery that can also charge a phone.
Best for
Long rides and phone charging
Why we like it
The CL1200 reaches 1200 lumens at most and runs about 10 hours at 300 lumens, 5 hours at 600 and 2.75 hours at 1200. The 5000 mAh cell can also charge a phone or cycling computer, which helps on a long trike tour.
A glass diffuser spreads the beam and cuts it off at the top, so it suits roads with traffic. It mounts to Garmin quarter lock mounts or an out-front mount, and it can be hung upside down. A two-year guarantee comes with it.
Key specs
| Fit and mounting | Garmin quarter lock, upside-down mounting |
|---|---|
| Features | 1200 lumens, 10 h at 300 lumens, glass diffuser |
Specs can change between model years; confirm the exact version before buying.
Strengths
- Large 5000 mAh battery
- Charges phone or computer
- Glass diffuser with beam cutoff
- Two-year guarantee
Limitations
- Bigger and heavier body
- Slower 4 hour charge
Consider it if
- Touring on a trike
- Riders who need charging on the go
Skip it if
- Riders with very little bar space
Best for City Riding3 of 4

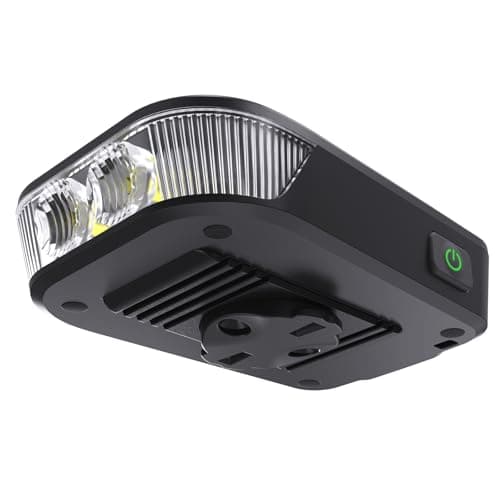

Ravemen FR500
Auto on and off with a wide 270 degree beam.
Best for
Commutes and daytime visibility
Why we like it
Two LEDs deliver up to 500 lumens, and a 270 degree view angle lights the sides at junctions. It works with Garmin out of the box, and Wahoo needs swapped parts except the original Wahoo ELEMNT BOLT aero mount.
Auto on and off removes the chance of forgetting the switch. It is gentler than the Magicshine or towild in raw power, so it suits lit routes. It can light while charging, which helps on a long evening ride.
Key specs
| Fit and mounting | Garmin compatible out of the box, Wahoo with swap parts |
|---|---|
| Features | 500 lumens, 270 degree view, 6 modes, auto on/off |
Specs can change between model years; confirm the exact version before buying.
Strengths
- Auto on and off
- 270 degree side visibility
- Three daytime flash modes
- Aluminum heat dissipation
Limitations
- Not as strong as 1200 lumen lights
- Wahoo needs swapped parts
Consider it if
- City riders on lit routes
- Forgetful riders
Skip it if
- Unlit country roads
Best Small Light4 of 4

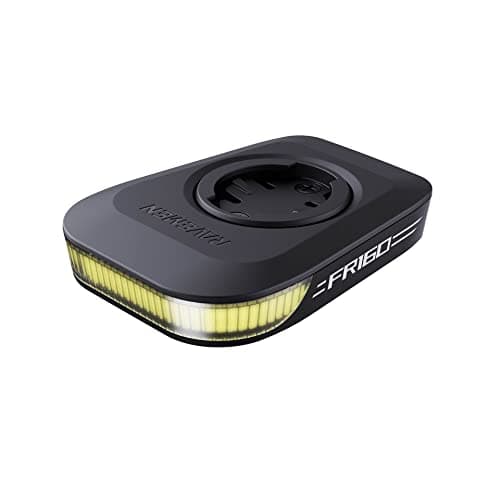

Ravemen FR160
A compact 160 lumen flasher that rides under a computer.
Best for
Daytime be-seen flashing
Why we like it
The FR160 gives up to 160 lumens with three steady and three flash modes, and a wide-angle lens widens side visibility at crossings and roundabouts. It charges over USB-C and carries an IPX6 rating, so close the charging flap before rain.
It is an auxiliary light, not a main see-ahead light, and it does not fit the Garmin Edge 130 Plus or the Edge TT or tri bar mount. Pair it with a stronger headlight for dark rides.
Key specs
| Fit and mounting | Garmin style, Wahoo needs QTM01 |
|---|---|
| Features | 160 lumens, 3 steady and 3 flash modes, IPX6 |
Specs can change between model years; confirm the exact version before buying.
Strengths
- Compact body
- Wide-angle side visibility
- USB-C charging
- IPX6 water rating
Limitations
- Too weak as a main light
- Not for Edge 130 Plus or tri mounts
Consider it if
- Daytime flashing
- Second light for a Garmin bracket
Skip it if
- Dark roads as the only light
Spec Comparison
Key figures side by side. A dash means the brand gives no figure, so ask before you buy if it matters to you.
| Model | Fit | Features | Battery | Link |
|---|---|---|---|---|
| Magicshine Hori 1300S Best Overall | Dual mount, Garmin/Wahoo/Bryton, fits 28/32/35 mm bars | 1300 lumens, cut-off low beam, IPX6, remote included | 3200 mAh, USB-C | Check price |
| towild CL1200 Best Runtime | Garmin quarter lock, upside-down mounting | 1200 lumens, 10 h at 300 lumens, glass diffuser | 5000 mAh, USB-C, 4 hour charge | Check price |
| Ravemen FR500 Best for City Riding | Garmin compatible out of the box, Wahoo with swap parts | 500 lumens, 270 degree view, 6 modes, auto on/off | — | Check price |
| Ravemen FR160 Best Small Light | Garmin style, Wahoo needs QTM01 | 160 lumens, 3 steady and 3 flash modes, IPX6 | — | Check price |
How We Chose These Bike Headlights with Garmin Mounts
- Mount compatibility
- We checked which computers and brackets each light takes, and which need swapped parts. A light that fits your bracket at the start saves more than a stronger one that does not.
- Beam control
- We favored lights that cut off the top of the beam, because a trike sits low and drivers face the light directly. Comfortable low beams matter more here than peak lumens.
- Battery and charging
- We compared battery size and stated hours per level, and noted USB-C charging. Longer runtime matters on a slow trike, where evening rides stretch out.
- Bar space
- We noted bar clamp ranges and whether a computer and light can share a bracket. Trike bars carry brake levers and baskets, so space is limited.
What to Look for in a Bike Headlights with Garmin Mounts
Garmin mount type
A Garmin-style mount is a quarter-turn bracket that either clamps to the bar or sits on an out-front arm. Some lights ship with it, others need a swapped insert.
If you already own a bike computer bracket, check whether the light fits it before buying. Out-front arms sit farther from the bars and keep the beam clear of baskets.
Beam cutoff
A cutoff beam bends the top edge lower so oncoming drivers do not get glare. Without it, a bright light can dazzle everyone on the road.
A trike sits lower and its light often points directly at drivers. Look for words like cutoff, anti-glare or diffuser, and tilt the beam down until the center sits well ahead of the front wheel.
Runtime per level
Battery claims depend on output level, and the highest level drains fastest. A light that runs 10 hours at 300 lumens may last under 3 hours at maximum.
Match the figure to your usual ride length. If you rarely use full power, a mid level with long runtime is enough.
Bar clamp size
Clamp ranges are given in millimeters and trike bars are often thicker or have bends. A clamp too small simply will not close.
Measure the bar where you plan to mount, away from grips and levers, and compare it to the stated clamp range before buying.
How to Choose
By Riding Style
| Situation | Our pick | Why |
|---|---|---|
| Dark roads with traffic | Magicshine Hori 1300S | Cut-off low beam and strong high beam |
| Long tours needing phone power | towild CL1200 | 5000 mAh cell charges devices |
| Lit commute, forgetful rider | Ravemen FR500 | Auto on and off, wide side view |
| Daytime flashing on a bracket | Ravemen FR160 | Small, USB-C, three flash modes |
Mounted Above vs Below the Bar
- Above the bar
- The Magicshine Hori 1300S and towild CL1200 can mount above or below the bar. Above keeps the beam clear of a front basket handle.
- Below or out front
- An out-front arm holds the Ravemen FR500 forward, with the computer on the bar. Below the bar saves space but may lower the beam on a basket.
Most trike riders should mount lights above the bar unless a basket blocks the beam.
For Riders With a Bike Computer Specifically
- Look for
- A light with its own Garmin adapter or dual mount so the computer and light do not compete for the same bracket.
- In this comparison
- The Magicshine Hori 1300S has a dual mount for light plus computer, while the Ravemen FR500 works with Garmin out of the box.
When to Spend More
- Spend more if
- You ride in traffic after dark. The Magicshine Hori 1300S has the beam shaping and remote that justify the higher cost.
- Save if
- You ride lit routes and want a daytime flasher. The Ravemen FR160 is enough and takes little bar space.
Frequently Asked Questions
What does Garmin mount compatible actually mean?
It means the light uses the same quarter-turn bracket shape as Garmin bike computers, so it twists onto a Garmin out-front arm or clamp. Some lights ship with the adapter and others need a swapped insert for Wahoo.
Can I run a bike computer and a light on one trike bar?
Yes, if you use an out-front arm or a dual mount such as the one on the Magicshine Hori 1300S. Check bar clearance beside brake levers and any basket brackets first.
Do Garmin mount lights fit a trike's thick bars?
Usually, but clamp ranges differ. The Magicshine takes 28, 32 and 35 mm bars. Measure yours at the mounting spot and confirm the number before ordering.
Is a 1200 lumen light too bright for a trike?
Not if it has a cutoff beam, like the towild glass diffuser. A trike sits low, so tilt the light downward to keep glare off oncoming drivers and use lower levels where streets are lit.
How long will the battery last on a long evening ride?
At mid levels the towild runs about 5 hours at 600 lumens and 10 hours at 300. Plan on the steady level you will really use, and carry a power bank if your route is long.
Bottom Line
The Magicshine Hori 1300S is the best Garmin-mount headlight for trike riders because it shapes the beam as well as brightening it, and it shares a mount with a computer. Pick the towild for touring battery life, the Ravemen FR500 for easy city rides, and the FR160 only as a daytime flasher.
